Embed Axure prototypes in Jira and Confluence

You can embed Axure Cloud prototypes directly into Jira work items or Confluence pages to give your team full context while they review work. Once embedded, the prototype is fully interactive and allows commenting right from within the ticket.

Install the Axure app for Jira/Confluence​

You can install the Axure for Jira app or Axure for Confluence app directly from the Atlassian Marketplace or through your instance’s Admin settings.

Embed Axure links in a Jira ticket or a Confluence page​

  1. Open the Jira ticket or Confluence page where you want to embed the Axure link.

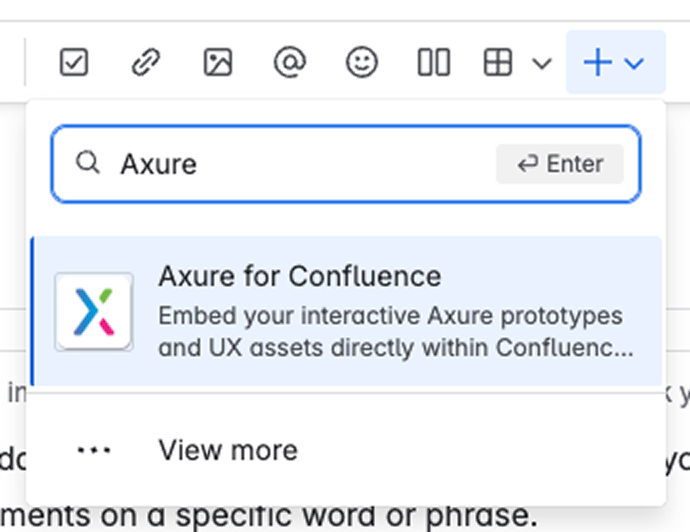

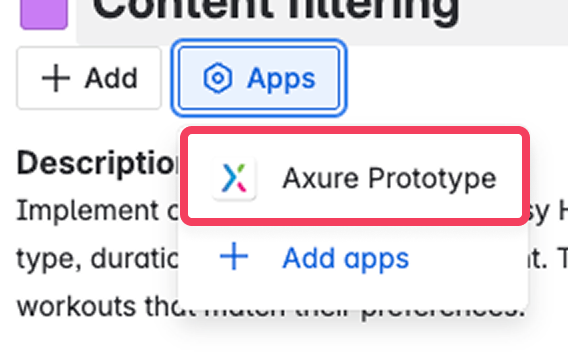

  2. Click Apps > Axure Cloud Link at the top of the Jira ticket or Insert elements and search for Axure for Confluence in the toolbar of the page editor.

  1. Paste the shareable link for your Axure RP prototype or Axure file into the text field that appears, then click the Link button.

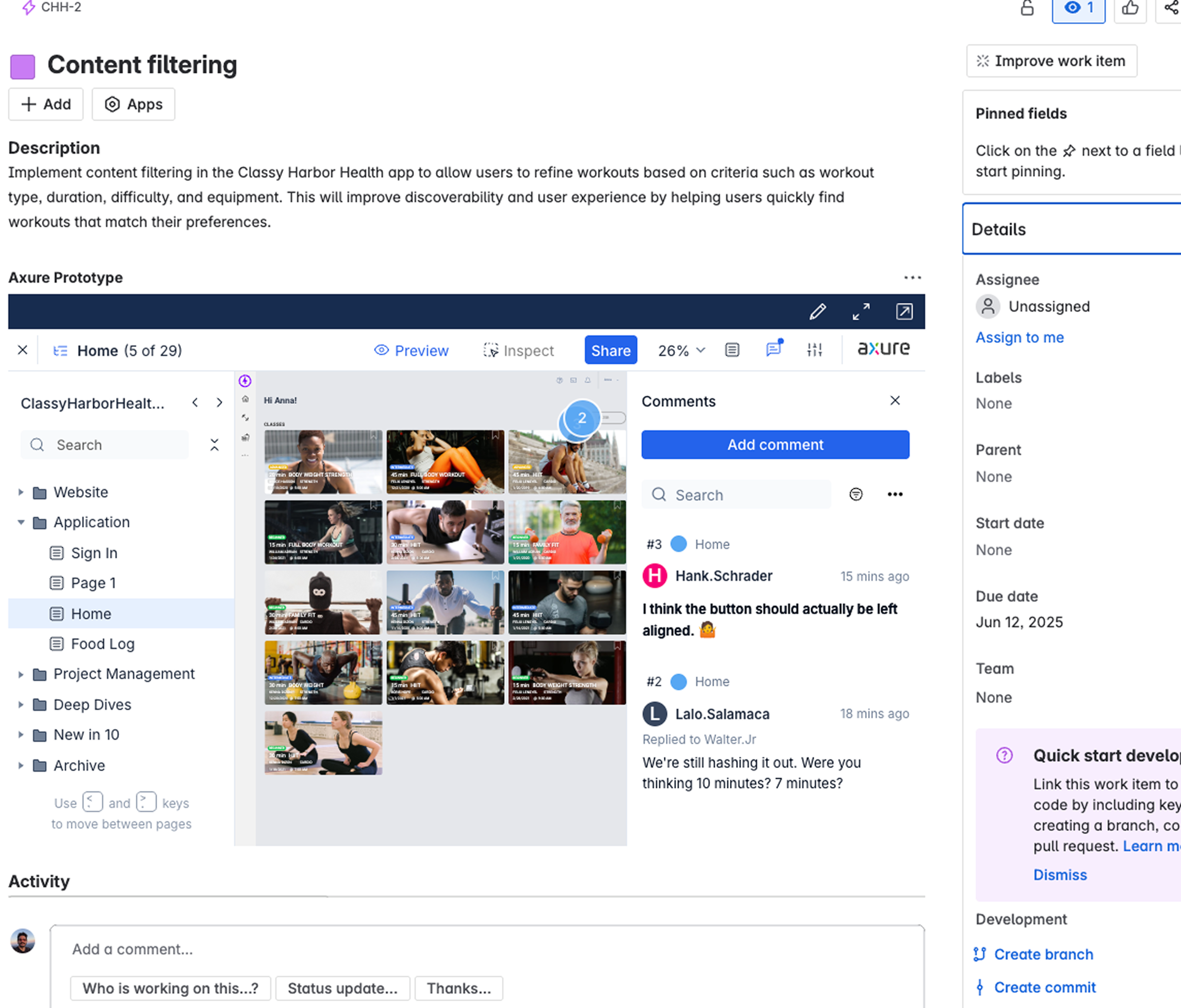

Once embedded, anyone with access to the Jira ticket or Confluence page can interact with the prototype and leave feedback directly on the page.

Use the icons at the top-right of the embedded prototype to unlink it, expand it, or open it in a new browser tab.

tip

To embed a specific page or pane from the prototype, open that page in your browser and copy the URL from the browser’s address bar. The embedded prototype will open with the same page or pane active.

If you need help with migrating prototype links during a move from Jira Server to Jira Cloud, please contact us at support@axure.com.
