Creating Clickthrough Projects on Axure Cloud

Axure Cloud clickthrough projects provide a space for you to share visual assets with your team and stakeholders. These can include image files as well as artboards from Sketch, Adobe XD, and Figma.

Once your assets are published to Axure Cloud, you can use the Build feature to create interactive prototypes from them right in Axure Cloud. You can also use Inspect to extract CSS, content, and layout information from Sketch designs.

Creating Clickthrough Projects

  1. Log in to app.axure.cloud or the Axure Cloud desktop app.

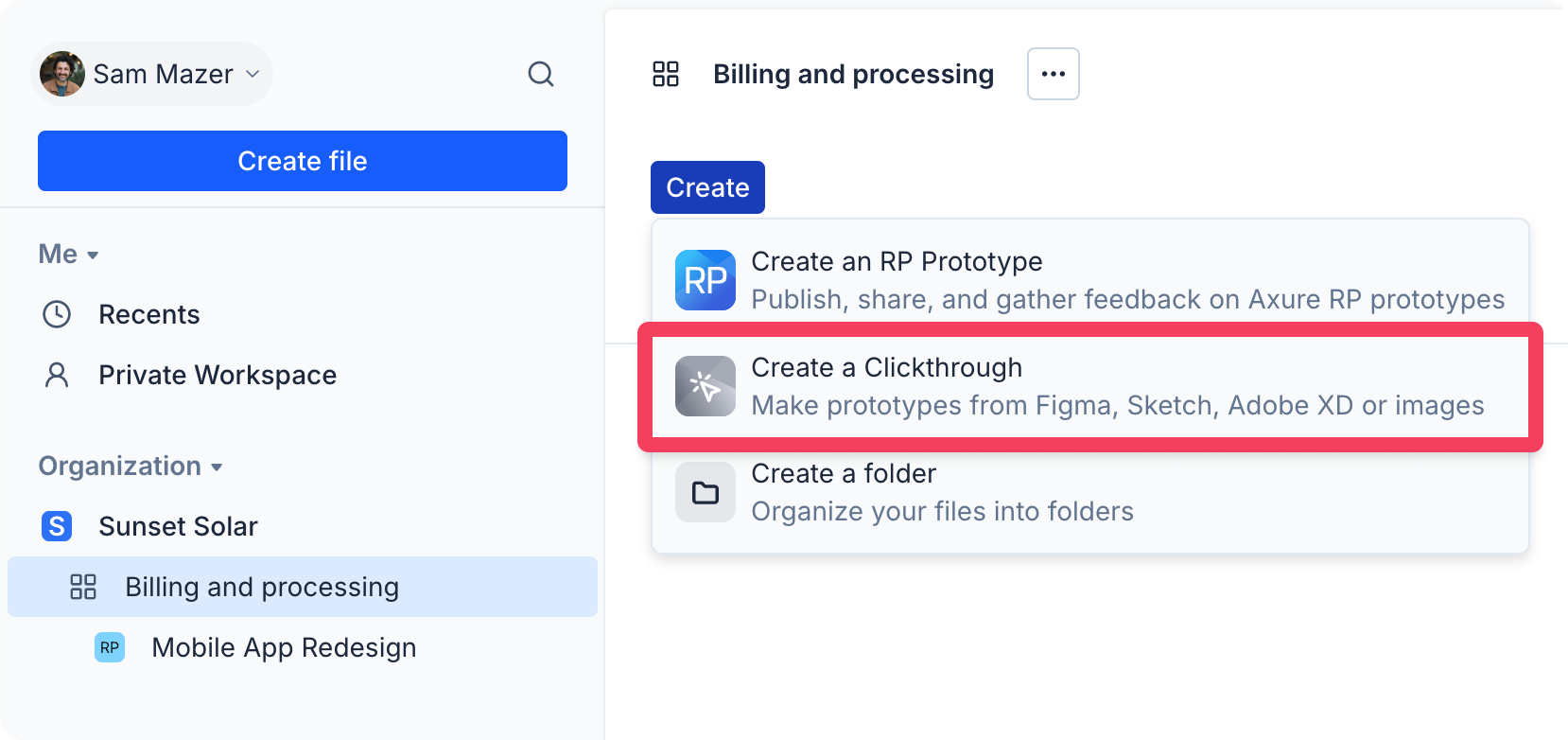

  2. Select the workspace you want to add the new clickthrough project to, and then click Create at the top-left of the workspace.

  1. In the dialog that appears, select Clickthrough.

  2. On the next screen, click Choose File to upload images, or click on one of the 3rd party application tabs.

  3. Click Upload to add your visual assets to the project.

  4. Optionally, you can rename the clickthrough project and specify the project dimensions on the right-side panel.

Adding Images

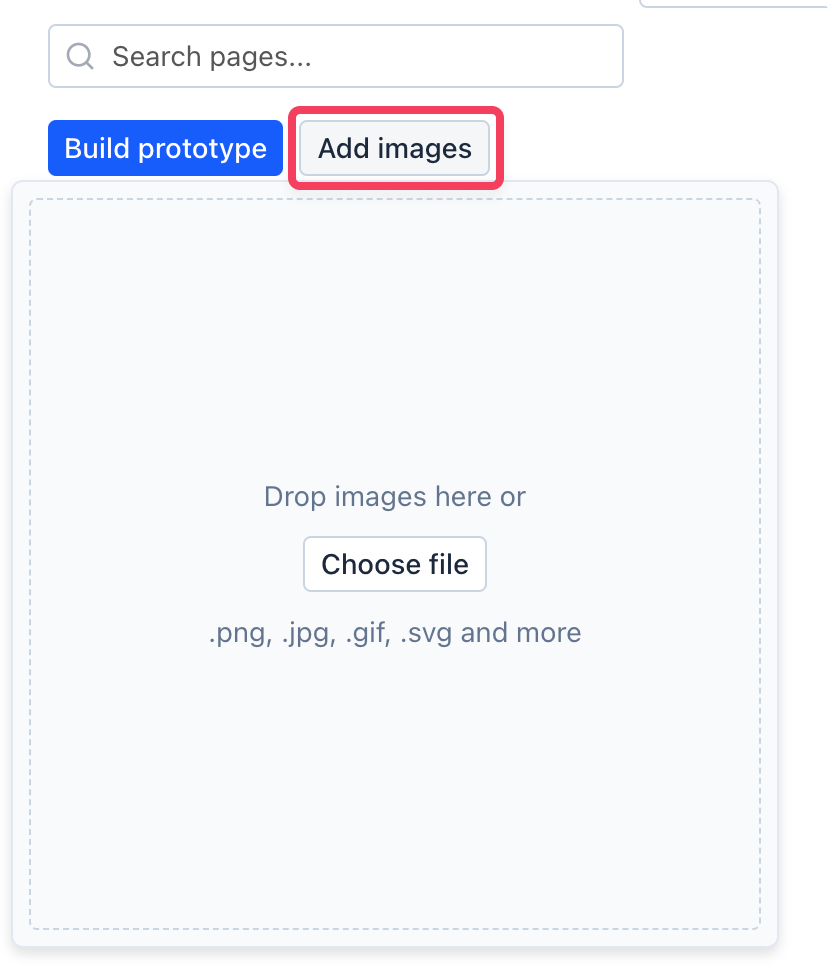

Click the + button at the bottom-right of the project's Overview screen to add PNG, JPG, GIF, and SVG files to the project.

You can drag-and-drop files directly onto the upload dialog or click Choose File to browse your computer's file explorer.

Adding Artboards from Sketch

You can publish Artboards from Sketch directly to Axure Cloud! Learn more in the Publishing from Sketch article.

Adding Artboards from Adobe XD

You can publish Artboards from Adobe XD directly to Axure Cloud! Learn more in the Publishing from Adobe XD article.

Removing Assets

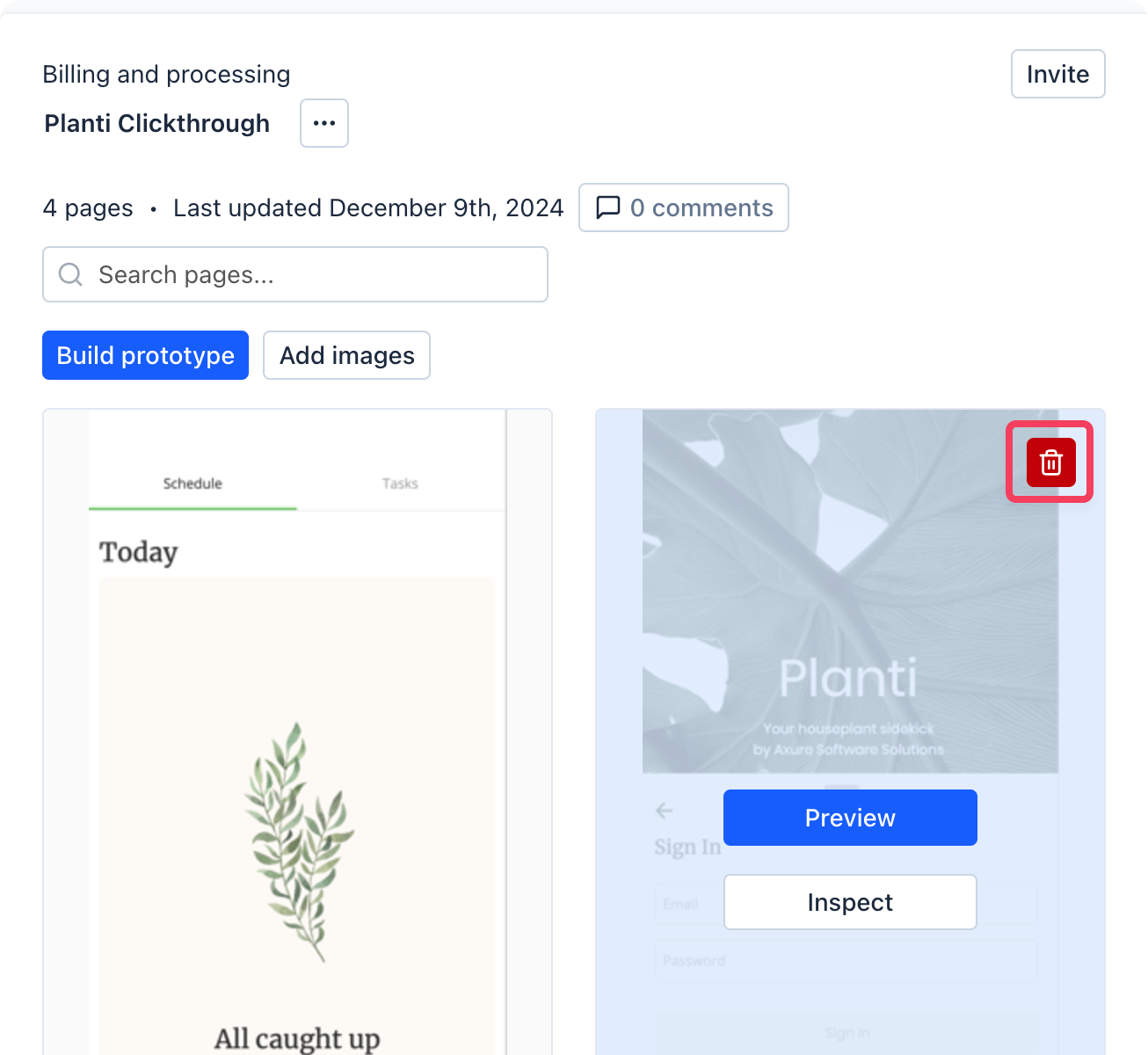

To remove an image file or Sketch artboard from a clickthrough project, hover over its tile on the project's Overview screen and click the trash can icon at the top-right.

removing assets from artboard projects on the Overview screen

You can also remove assets on the Build screen.

  1. Click Build Prototype at the top of the project's Overview screen.

  2. On the Build screen, select the asset you want to remove.

  3. In the ellipsis menu at the top-right of the asset, select Delete Screen.

removing assets from artboard projects on the Build screen

Sharing Clickthrough Projects

When you're ready to share your clickthrough project with teammates and stakeholders, check out the article on Sharing clickthrough projects from Axure Cloud.
